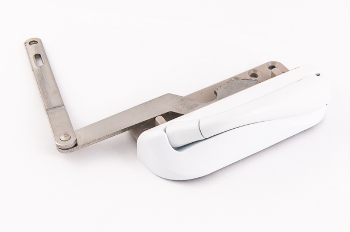

Dyad arm operator
Dyad arm operator Dyad arm operator Dyad arm operator Dyad arm operator

Dyad arm operator

LTS OPS-10601
Call us for availability

Technical documentation and download

*.DWG Technical Drawing *.PDF Technical Drawing Sample request

Ordering details

Part Number Description Box Qty. Details
OPS-10601D LTS dyad arm snap on operator right hand GN 20

Weight :

19,6 lbs

Box dimension :

14" x 13" X 3,5"

H.S. Code :

8302.41.60.80

Country of Origin :

China
OPS-10601G LTS dyad arm snap on operator left hand RD 20

Weight :

19,6 lbs

Box dimension :

14" x 13" X 3,5"

H.S. Code :

8302.41.60.80

Country of Origin :

China
OPS-10601D-SS 304 Stainless Steel LTS dyad arm snap on operator right hand GN 20

Weight :

19,7 lbs

Box dimension :

14" x 13" X 3,5"

H.S. Code :

8302.41.60.80

Country of Origin :

China
OPS-10601G-SS 304 Stainless Steel LTS dyad arm snap on operator left hand RD 20

Weight :

19,7 lbs

Box dimension :

14" x 13" X 3,5"

H.S. Code :

8302.41.60.80

Country of Origin :

China
*Cover and handle sold separatly

Accessories

Part Number Description Box Qty.
OPS-10224Straight snap on stud bracket200
OPS-10226''L'' shape snap on stud bracket for right hand operator200
OPS-10227''L'' shape snap on stud bracket for left hand operator200
OP-1000LTS operator backer plate500
OP-1012LTS operator gasket100
OP-0482.2 MM or 0.087'' window operator shim100
